Delden’s aluminum doors are constructed of 2″ thick extruded aluminum rails and stiles and can be fitted with solid aluminum panels or a variety of full-view glass options. Perfect for automotive showrooms and repair centers, service stations, car washes, fire houses, restaurants, and sports complexes; our aluminum doors create a clean style for any facility. These doors can be installed as stationary mount or operative as a stylish alternative for indoor/outdoor environments.
NEW! The ClearView Aluminum Strut System provides added strength and durability to larger Model SSD-3550 without restricting viewing area. Included as standard for doors 16′ 4″ to 24′ 2″.

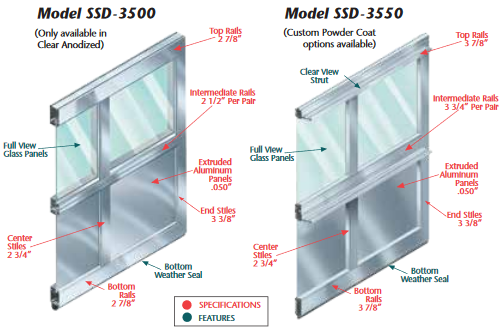

| Specifications | SSD-3500 | SSD-3550 |
|---|---|---|
| Aluminum Thickness | 6063-T5 | 6063-T5 |
| R – Value | N/A | N/A |
| Maximum Standard Height | 12′ | 18’ |
| Maximum Standard Width | 12′-2″ | 24′-2″ |
| Door Thicknes | 2″ (51mm) | 2″ (51mm) |
| Exterior Color | See chart for available colors | See chart for available colors |
| Custom Options¹ | ✓ | ✓ |
| Glazing | 1/8” (3.2mm) | 1/8” (3.2mm) or ½” Insulated Double Pane |
